Fischer 500718, Putkenkiinnitin, Terästä, 40 - 43 mm, 3,18 cm (1.25"), Sinkittyä terästä, 1 kN

Tuotenumero: [10183829] | Valmistaja: fischer bargoin | Mallinum: 3494945 | EAN: 4048962002201 | VVS-nr.: 018815040
Etävarastossa
Tuotetta on etävarastossamme. Toimitusaika noin 3-4 työpäivää.
Toimitusvaihtoehdot  - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
7,02
Bring - Toimitus huoltopisteeseen
7,02
Bring - Kotiinkuljetus -arkisin.
15,12
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten: Tallenna
EUR 3,21
ilman ALV 2,56
Kokonaishinta sis. toimitus 10,23
Lue lisää teknisistä tiedoista

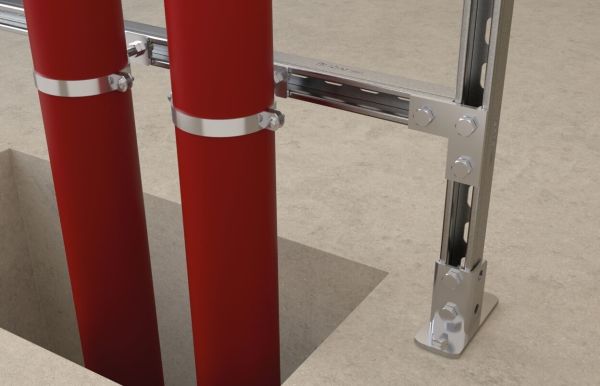

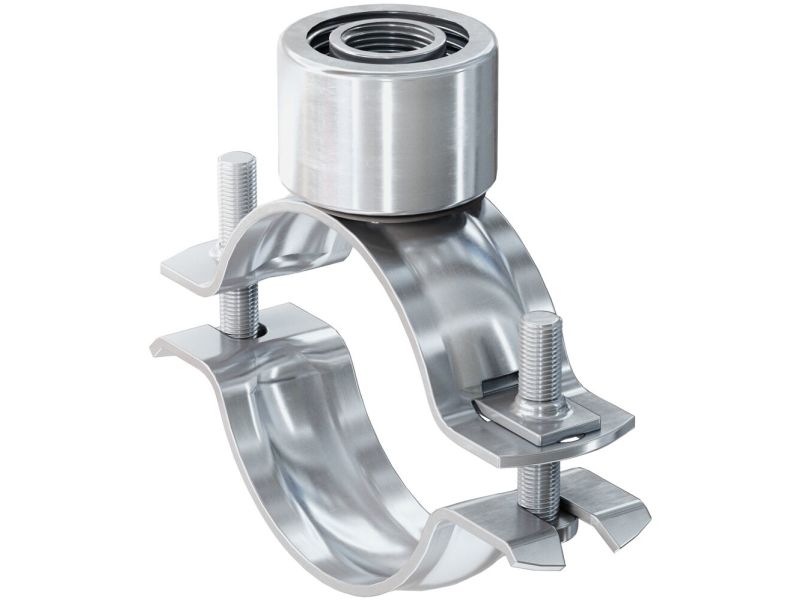

The fischer pipe clamp FRSN Triple is a two-screw pipe clamp made from zinc-plated steel in material quality DD11 with a triple M8/M10 and ½" thread without a sound insulation insert. The rapid-locking mechanism allows for a quick and easy installation. The two-screw version guarantees optimised adjustment in line with the outer diameter of the pipe. Together with the triple connecting thread, this increases flexibility. This enables pipelines with an outer diameter of 15 to 114 mm to be securely and cost-effectively fixed in buildings with a threaded rod or stud screw.

Advantages
- The connecting nut with combination thread M8 / M10 / 1/2” allows for optimised mounting positioning.
- The rapid-locking mechanism allows for fast and time-saving installation.
- The two screws allow for ideal adaptation to suit the outer pipe diameter.

Properties
- Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
- Zinc plating: electro zinc plated
- Connecting nut: resistance welded, M8 / M10 / 1/2"
- Locking screw: flat head screw with combination recessed head
