Schneider Electric ABE7R16S111
Tuotenumero: [1550068] | Valmistaja: SCHNEIDER ELECTRIC | Mallinum: ABE7R16S111 | EAN: 3389110545272 | UNSPSC.: 32151802 | EL-nr.: 7586023229
Ikke på lager
Tuotetta ei ole varastossa. Lisätietoja
Loppuunmyyty
Tuotetta ei ole varastossa.
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
Ilmainen toimitus
Bring - Kotiinkuljetus -arkisin.
15,12
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
449,77
ilman ALV 358,38
Kokonaishinta sis. toimitus
449,77
Ilmoita minulle, kun tuotetta on jälleen tarjolla varastossa
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Luo käyttäjä
Kirjaudu
Luo käyttäjä
Kirjaudu
Send på mail

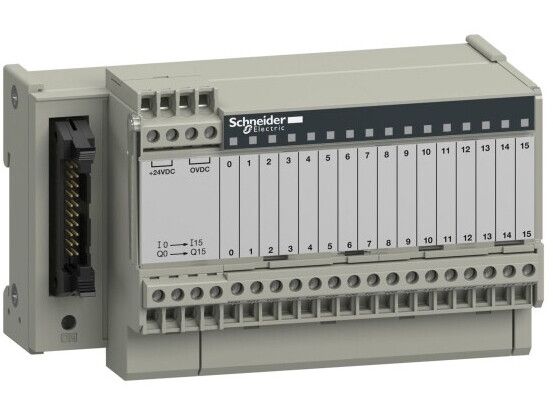

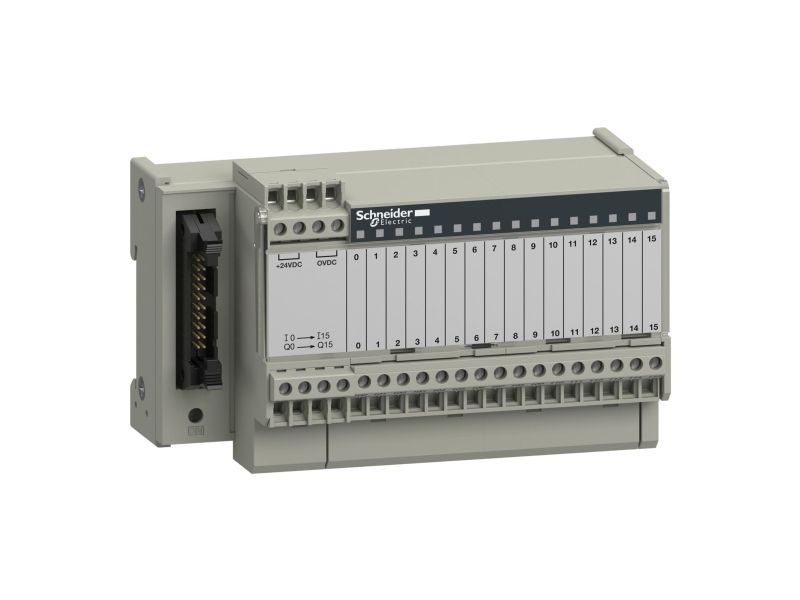

Schneider Electric ABE7R16S111
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Plug & play solution
8, 12,16 channel modularity
1, 2, 3 wire connection
LED state display
55mm width sub-base
Voltage and power adaptation
Common polarities distribution
Solid state and electromechanical technology
Specialised sub-bases for analogue signal connection
Benefits
Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment.
Applications
All types of industrial applications
Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm.
This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered electromechanical relay sub base offers 16 channels with 1 terminal per channel. The input sub base offers a rated supply voltage of 24V DC for PLC end and NO contact for pre actuator end. It is furnished with removable terminal block. It is an IP2x rated product. Its dimensions are 125mm (width) x 58mm (depth) x 77mm (height). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by DNV, UL, CSA, GL, BV, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Plug & play solution
8, 12,16 channel modularity
1, 2, 3 wire connection
LED state display
55mm width sub-base
Voltage and power adaptation
Common polarities distribution
Solid state and electromechanical technology
Specialised sub-bases for analogue signal connection
Benefits
Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment.
Applications
All types of industrial applications
Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 5 mm.
