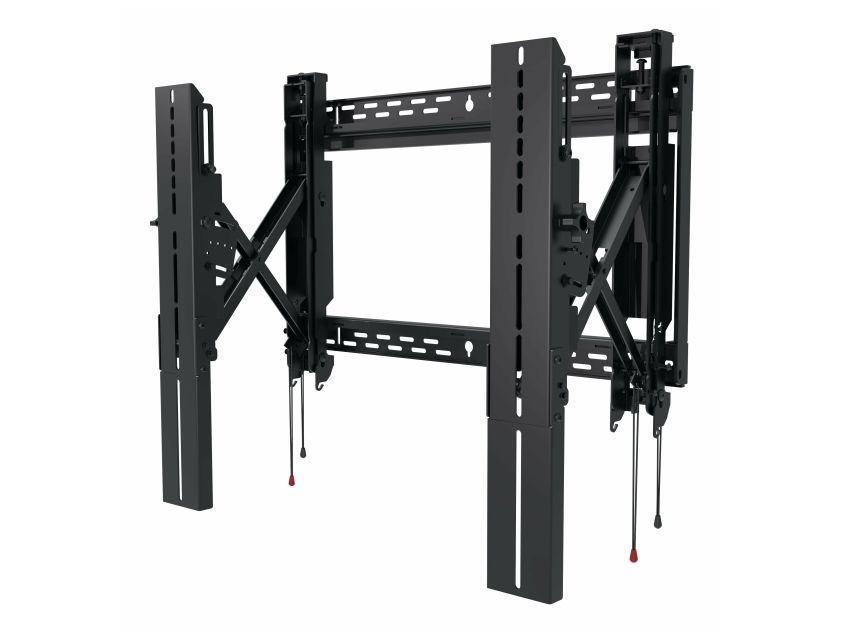

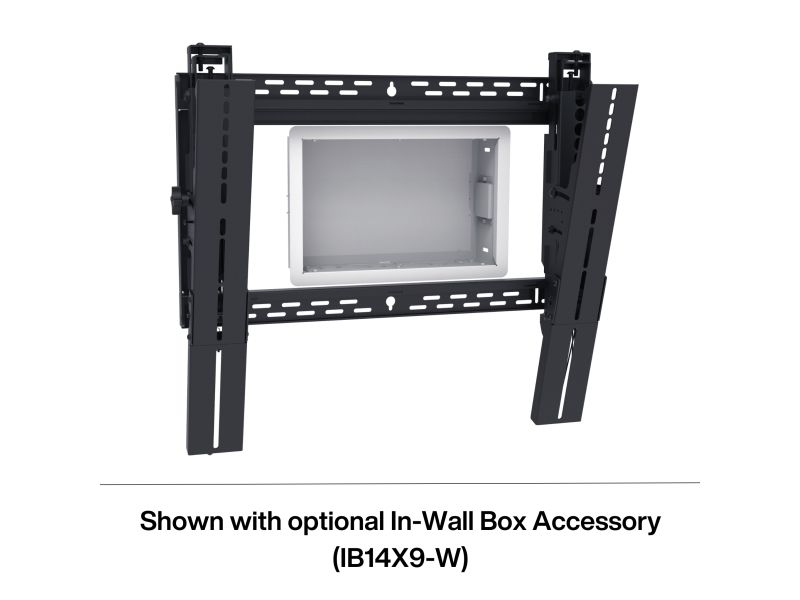

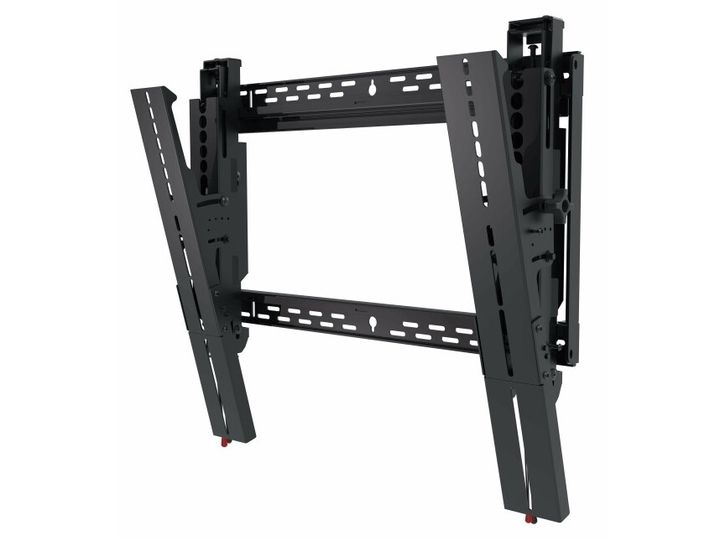

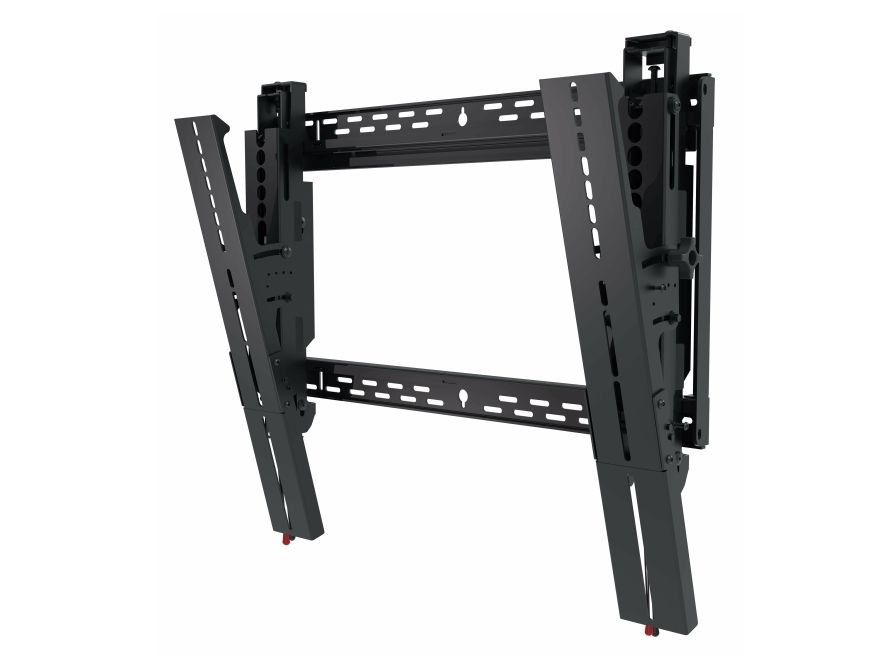

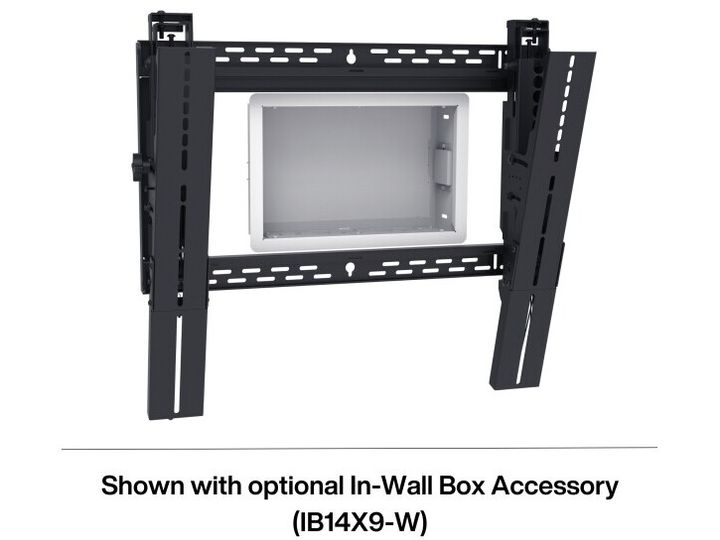

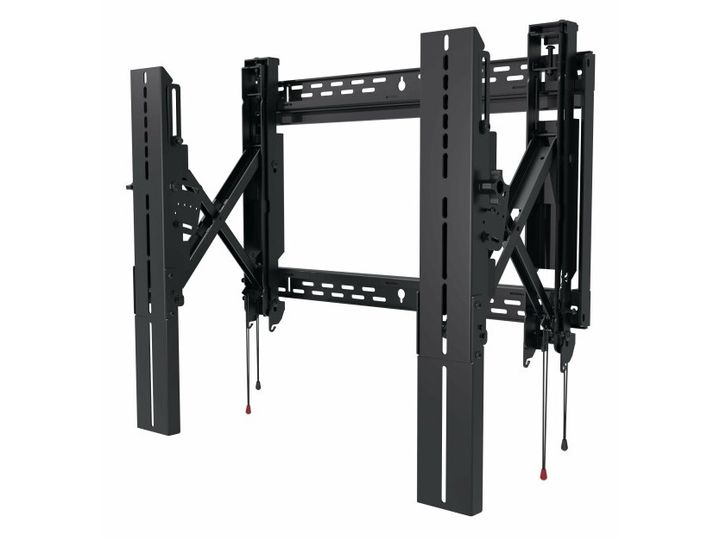

Peerless-AV’s SmartMount® Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650’s extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang™ feature, and the mount’s open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Tuettavien näyttöjen määrä
1
Näytön yhteensopivuuden enimmäiskoko
2,16 m (85")
Kiinnitystyyppi
Seinä
Enimmäispaino
90,7 kg
Asennusliitännän yhteensopivuus (min.)
200 x 100 mm
Asennusliitännän yhteensopivuus (maks.)
600 x 400 mm
Näytön yhteensopivuuden vähimmäiskoko
99,1 cm (39")
VESA-asennusliitännät
200 x 100,600 x 400 mm
Kallistuskulma
2 - 15°
Korkeussäätö
Kyllä
Tuotteen väri
musta
Tuotteen leveys
732 mm
Tuotteen syvyys
97 mm
Tuotteen korkeus
683 mm
Paino
16,1 kg
Pakkauksen leveys
464 mm
Pakkauksen syvyys
829 mm
Pakkauksen korkeus
114 mm
Pakkauksen paino
18,1 kg
Käyttöopas
Kyllä
Asennussarja
Kyllä
Vaatimustenmukaisuustodistukset
RoHS, Laki kauppasopimuksista (TAA), cULus
Syvyyden säätöalue
97 - 305 mm
Löydämme tuotteen järjestelmästämme helposti seuraavalla tuotenumerolla
EAN:
0735029354376
SKU:
STS650
