The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.
With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.
Tuotekuvaus

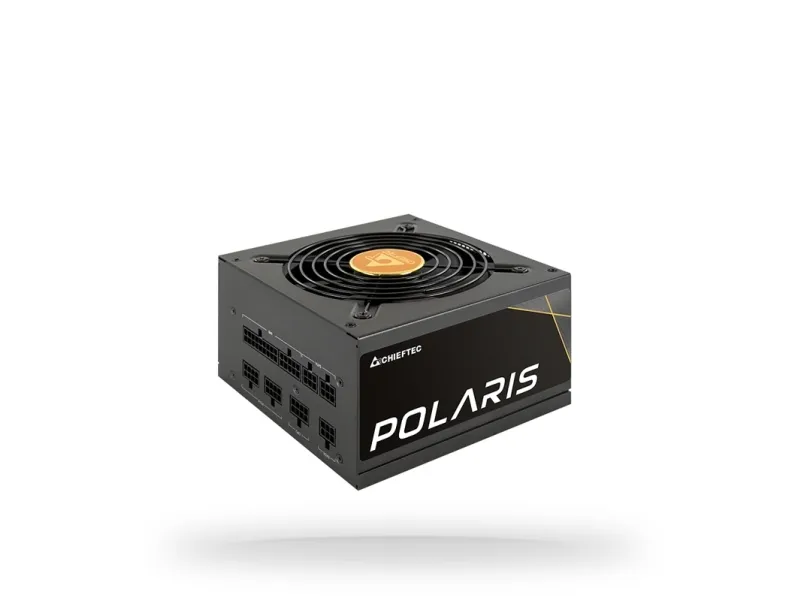

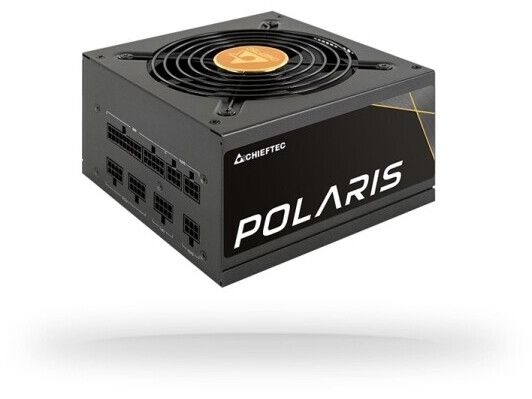

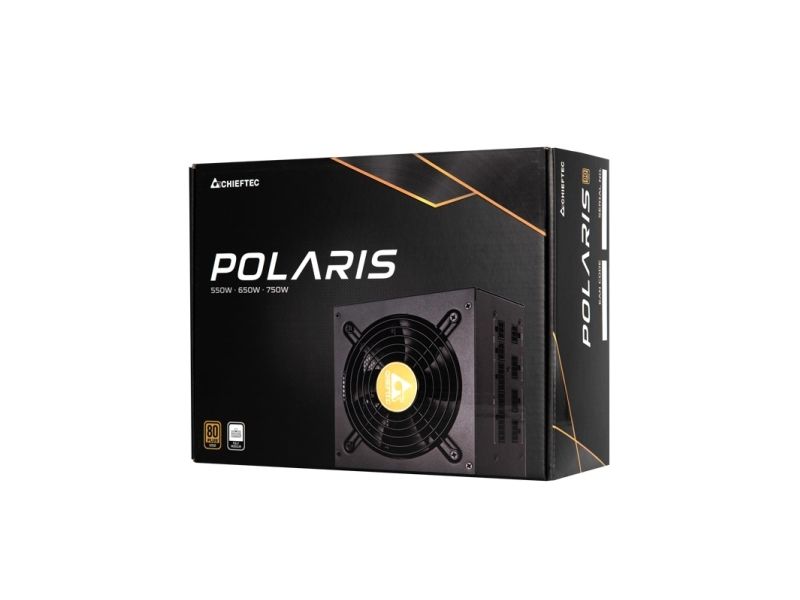

Chieftec Polaris Series 650W - virtalähde - 650 watti(a)
Laitteen tyyppi
Virtalähde - Aktiivinen tehokertoimen korjaus (PFC) - sisäinen
Teknisten tietojen vaatimustenmukaisuus
ATX12V 2.4/ EPS12V
80 PLUS -sertifiointi
80 PLUS Gold
Paino
2.175 kg
Tulojännite
Vaihtovirta 100-240 V
Lähtöjännite
+3.3, +5, ±12 V
Virtakapasiteetti
650 watti(a)
Output -virta
+5V - 22 A +3.3V - 22 A +12V1 - 54.2 A +5VSB - 3 A -12V - 0.3 A

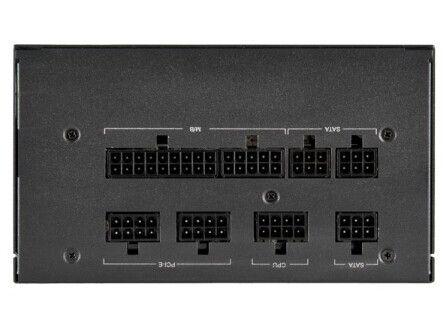

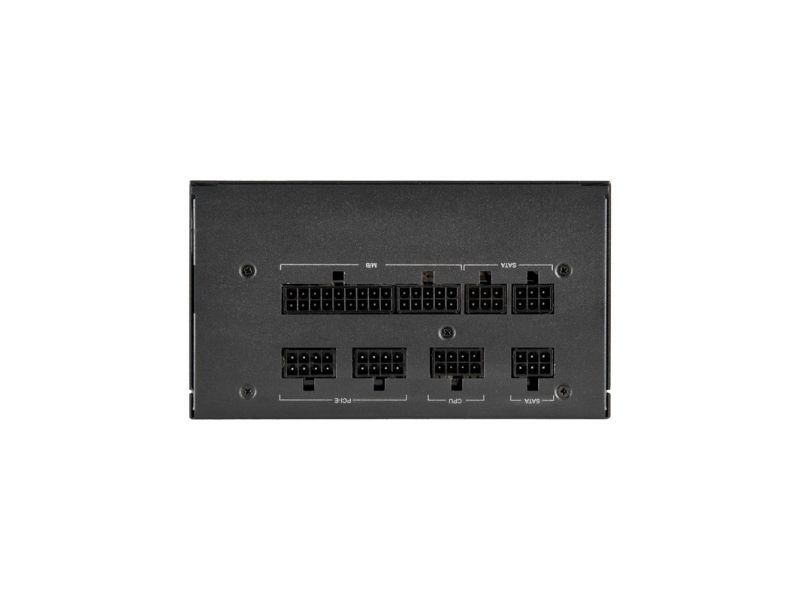

Lähtöliittimet
1 x virta 24 nastan ATX irrotettavalla 4 nastan osiolla 2 x virta 8 nastan EPS12V irrotettavalla 4 nastan ATX12V osiolla 4 x 8 pin PCI Express power with detachable 2 pin section 3 x 4-nastainen sisäinen virta 6 x 15 pin Serial ATA power 1 x 4-nastainen mini-virtavastake
Modulaarijohdon hallinta
Kyllä
Jäähdytysjärjestelmä

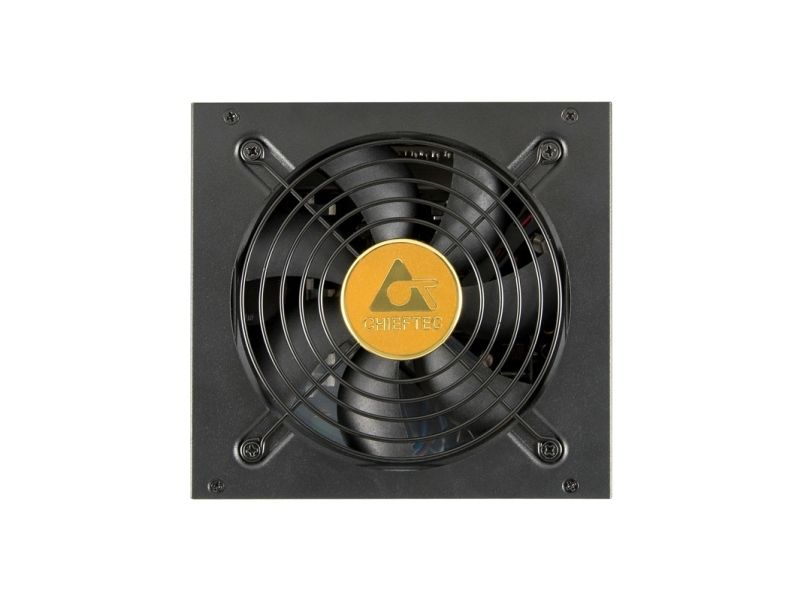

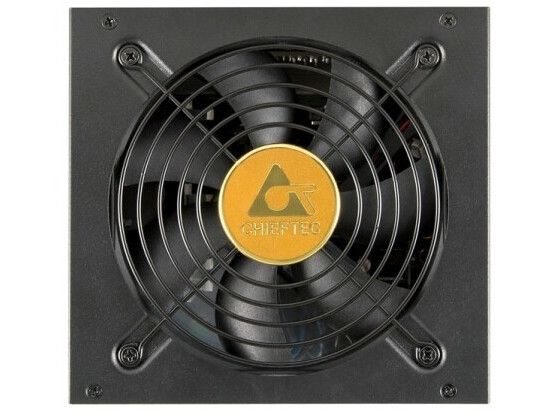

120 mm tuuletin
Ulkomitat (PxSxK)
15 cm x 14 cm x 8.7 cm
Valmistajan takuu
2 vuoden takuu
Skjerm
Tehon lähtöliittimien yksityiskohdat
Intel Server Board S2600WF0
Virtakapasiteetti
Strøm via Ethernet power over Ethernet (PoE), Intrusion Detection System (IDS), halv dupleksmodus, full dupleksmodus, Quality of Service (QoS), Management Information Base (MIB), Wi-Fi Clear Connect, Virtual Service Community (VSC)
80 PLUS -sertifiointi
1 x Intel Dual-Core Xeon 5100-serien 2.66 MHz
Prosessor / Minne / Lager
Leveys
Transcend Network Supervisor
Syvyys
Begrenset garanti - deler og arbeid - 2 år
Löydämme tuotteen järjestelmästämme helposti seuraavalla tuotenumerolla
EAN:
0753263076434
SKU:
PPS-650FC
