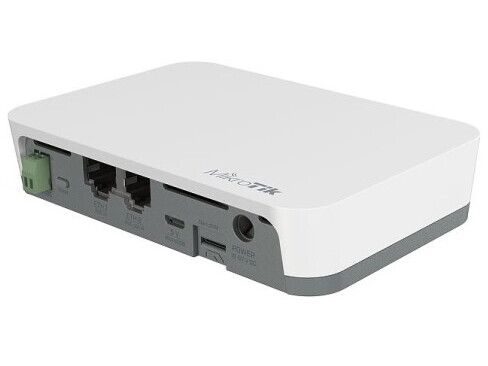

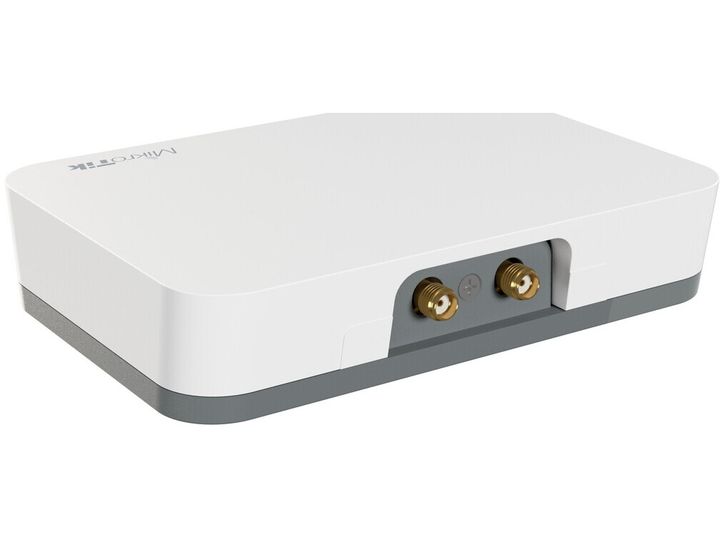

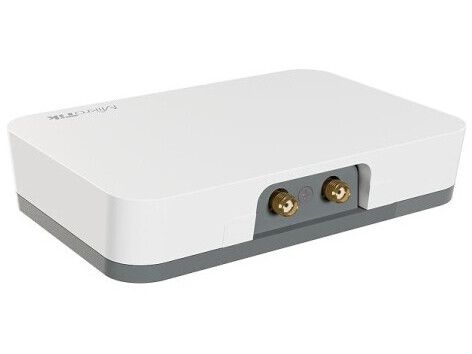

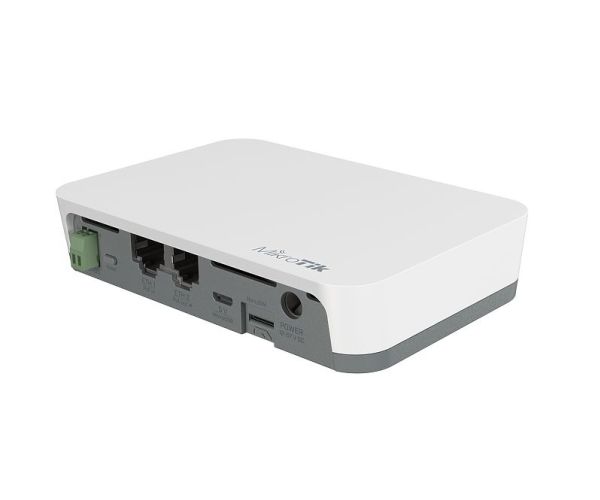

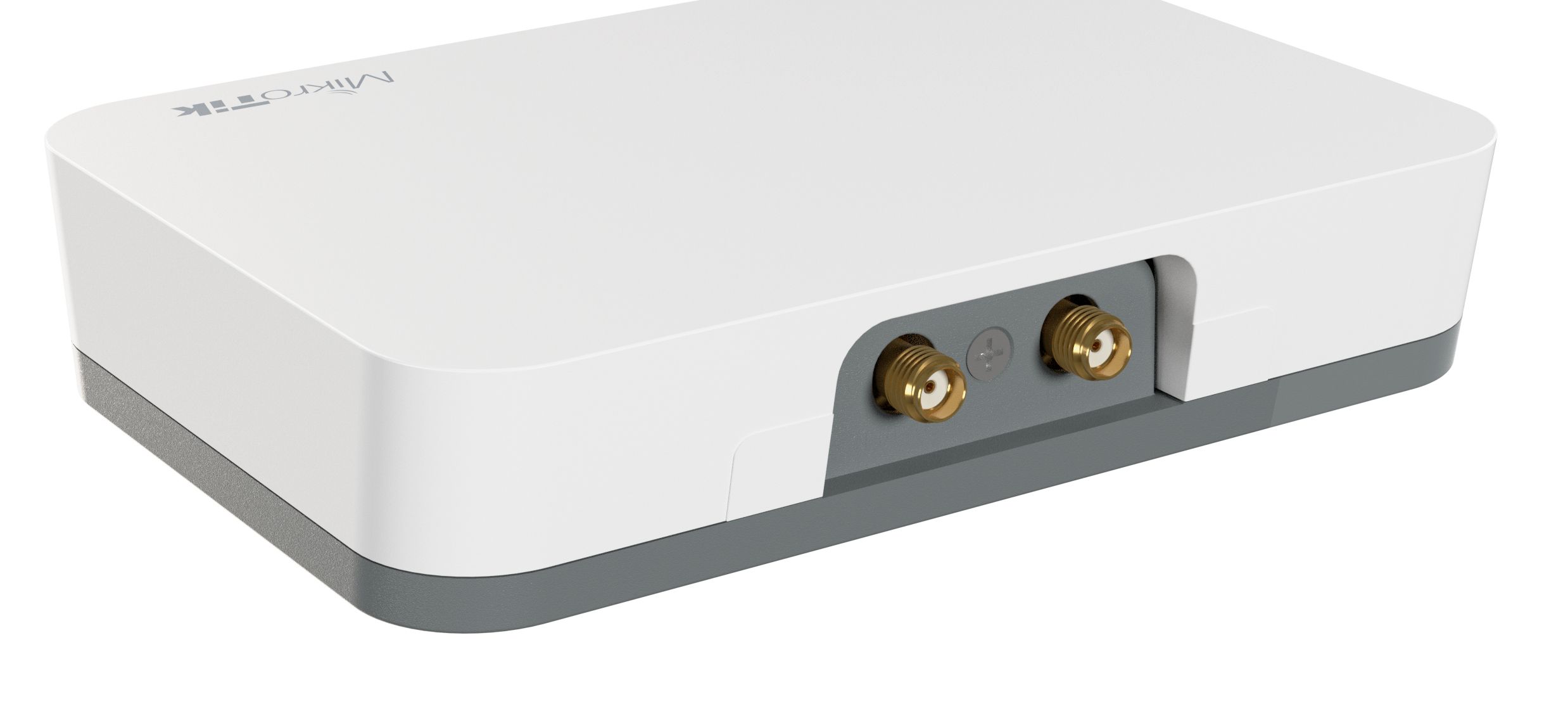

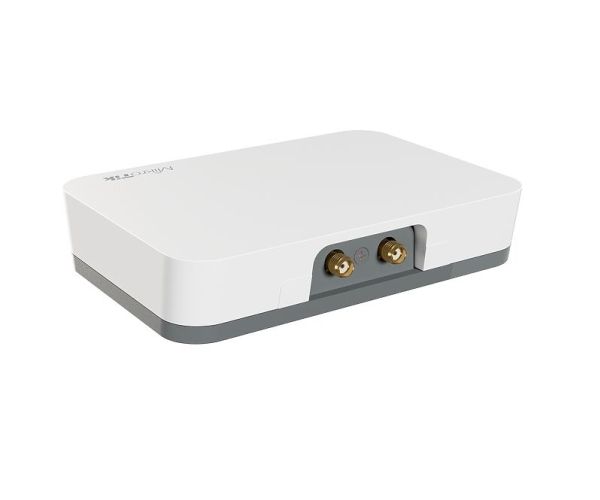

KNOT is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don't need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.

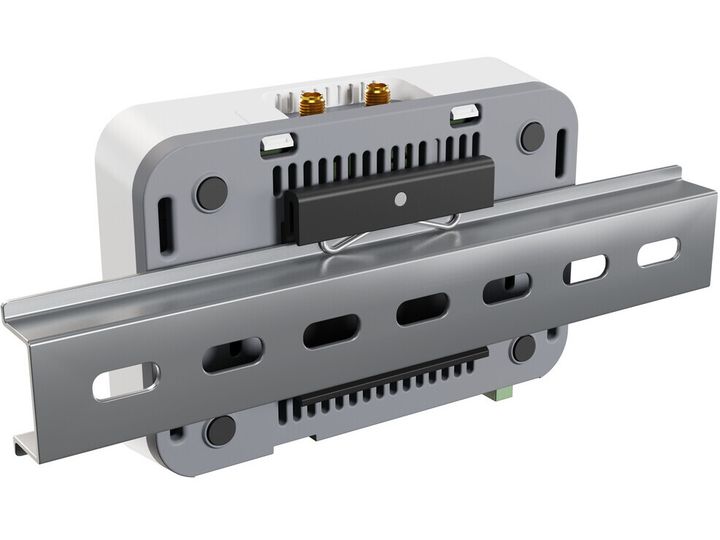

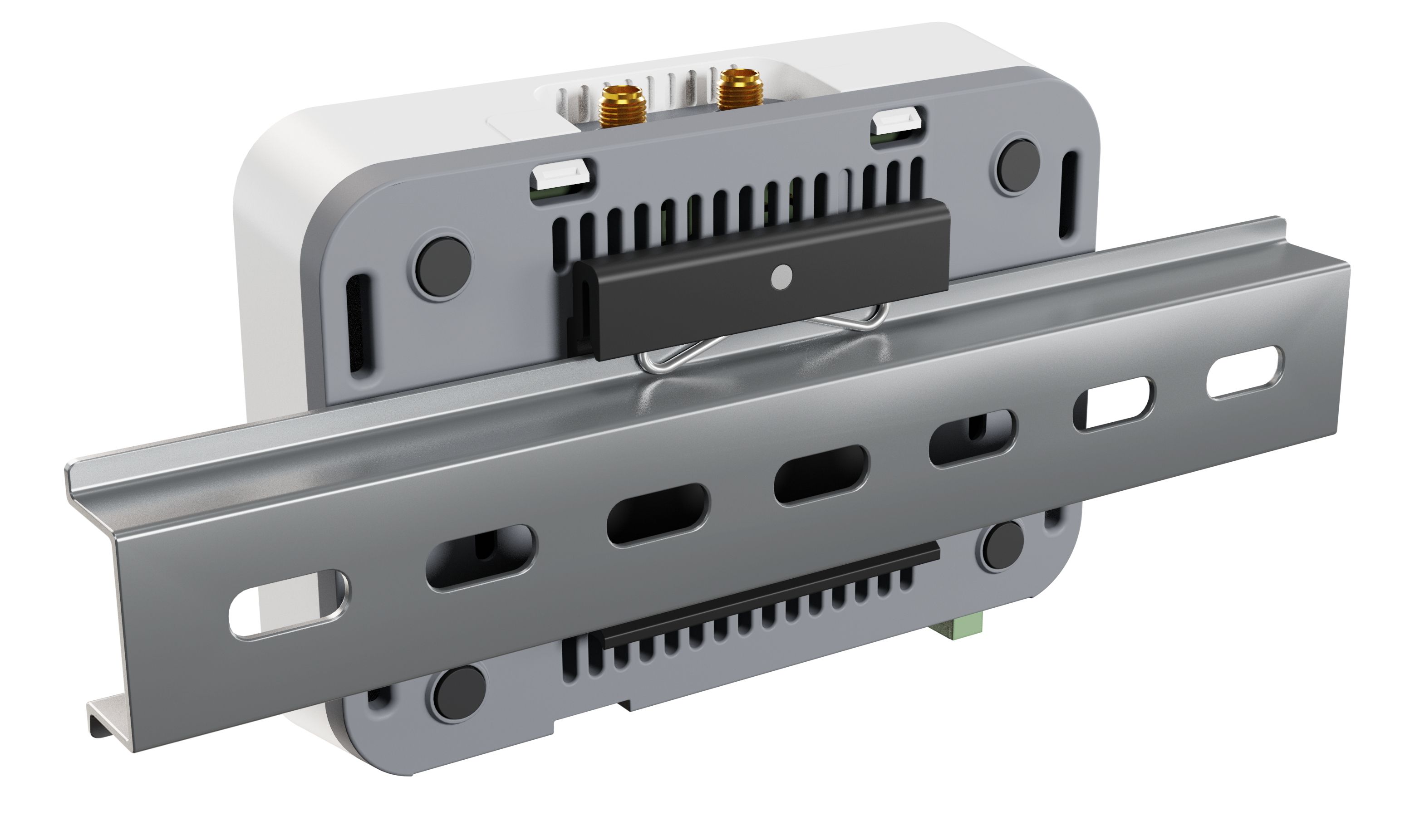

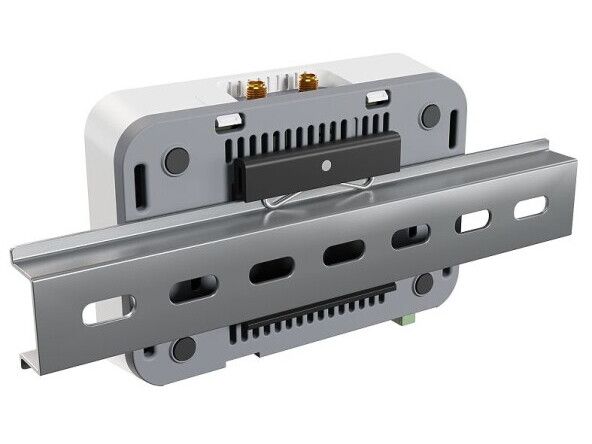

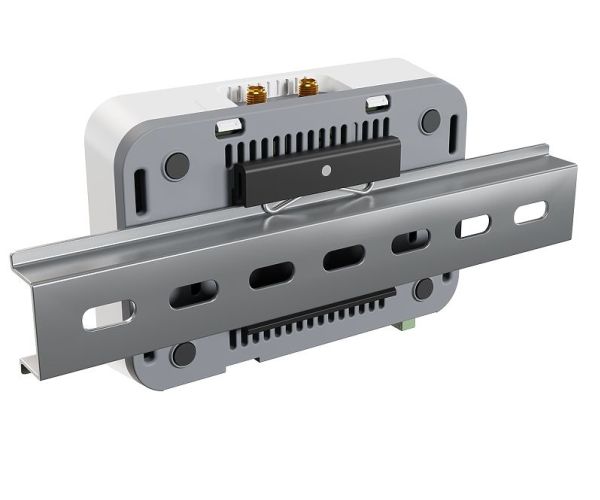

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Tuotekuvaus
MikroTik KNOT RB924i-2nD-BT5&BG77 - yhdyskäytävä - Wi-Fi, Bluetooth
Laitteen tyyppi
Yhdyskäytävä
Koko tai muoto
Seinään / DIN-kiskoon asennettava
Suoritin
1 x Qualcomm QCA9531 - 650 MHz
Käyttömuisti (RAM)
64 Mt
Flash-muisti
16 Mt
Tiedonsiirtoprotokolla
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.2
Taajuuskaista
2.4 GHz
Sisältyvät lisävarusteet
DIN-rail mounting kit, seinäkiinnityspaketti
Power Over Ethernet (PoE) -tuki
PoE+
Virransyöttö
DC 12 - 57 V
Ulkomitat (PxSxK)
12.2 cm x 8.7 cm x 2.6 cm
Generelt
Leveys
1 x 9
Korkeus
9.6 cm
Fabrikantgaranti
Tiedonsiirtoprotokolla
1600000 IOPS
Nettverkstilknytning
Liitännät
56064 TB
Programvare / Systemkrav
Vähimmäiskäyttölämpötila
7 GB (innebygget) / 14 GB (komprimert)
Enimmäiskäyttölämpötila
9 ms (gjennomsnittlig)
Löydämme tuotteen järjestelmästämme helposti seuraavalla tuotenumerolla
EAN:
4752224007131
SKU:
RB924I-2ND-BT5 BG77
