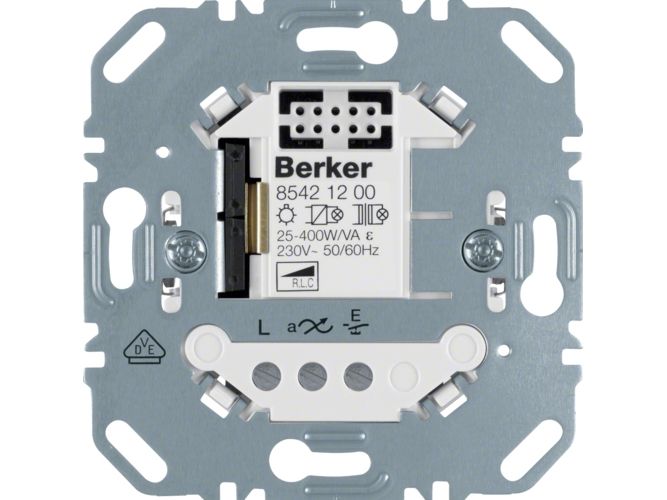

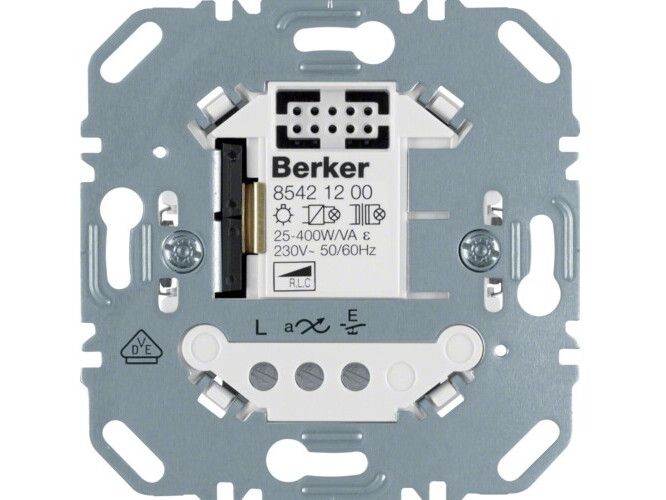

Berker 85421200, Himmennin, Kiinnitettävä, Metallinen, Metalli, Muovi, 230 V, 25 VA
Tuotenumero: [8751158] | Valmistaja: Berker | Mallinum: HAG-85421200 | EAN: 4011334375920
Etävarastossa
Tuotetta on etävarastossamme, toimitusaika noin 7-9 työpäivää. Lisätietoja
Toimitusvaihtoehdot - Valitaan kassalla
Budbee Laatikko - Nouda valitsemastasi laatikosta!
Ilmainen toimitus
Bring - Toimitus huoltopisteeseen
Ilmainen toimitus
Bring - Kotiinkuljetus -arkisin.
15,12
Toimituskulut on laskettu vastaanottajan postinumeron perusteella:00180 - Helsinki Vaihda postinumero
Syötä postinumero toimitusta varten:
EUR
145,91
ilman ALV 116,26
Kokonaishinta sis. toimitus
145,91
Lisää listaan
Tämä toiminto vaatii sisäänkirjautumisen. Luo käyttäjä ja voit käyttää listojamme esim. säännöllisiä ostoksia ja toivelistoja varten
Send på mail
Operating voltage 230 V AC
Fuse
short-circuit and overload proof (electronic fuse)
Power
Dimmable conventional transformers 25 … 400 VA
Power consumption (standby) < 0,3 W
Electronic transformers and dual-mode transformers 25 … 400 W
Measurement
Relative humidity (without condensation) 0 … 65 % (without condensation)
with extension unit input for push-button (NO contact), single-surface operation and motion detector extension unit
Materials
Material Plastic/metal
no conductive connection between supporting ring and spreading claws
Dimensions
Insertion depth 32 mm
Fluorescent bulbs control
Dimmable energy-saving lamps 13 … 80 W
LED control
Dimmable 230 V retrofit LED lamps 5 … 70 W
Incandescent bulbs control
230 V incandescent lamps and halogen lamps 25 … 400 W
Installation, mounting
with spreader claws
Connection
Screw terminals (max.) 2 x 1,5/1 x 2,5 mm²
Number of substations unlimited
with screw terminals
Cable
Load cable length max. 100 m
Cable length, extensions max. 50 m
Settings
Optimisation of the dimming performance by fine adjustment of the load type and special adjustment mode
Equipment
automatic setting of load-dependent switching principle (autoDetect process)
phase cut-on or cut-off according to load type, self-learning
Use conditions
Operating temperature -5 … 45 °C
Fuse
short-circuit and overload proof (electronic fuse)
Power
Dimmable conventional transformers 25 … 400 VA
Power consumption (standby) < 0,3 W
Electronic transformers and dual-mode transformers 25 … 400 W
Measurement
Relative humidity (without condensation) 0 … 65 % (without condensation)
with extension unit input for push-button (NO contact), single-surface operation and motion detector extension unit
Materials
Material Plastic/metal
no conductive connection between supporting ring and spreading claws
Dimensions
Insertion depth 32 mm
Fluorescent bulbs control
Dimmable energy-saving lamps 13 … 80 W
LED control
Dimmable 230 V retrofit LED lamps 5 … 70 W
Incandescent bulbs control
230 V incandescent lamps and halogen lamps 25 … 400 W
Installation, mounting
with spreader claws
Connection
Screw terminals (max.) 2 x 1,5/1 x 2,5 mm²
Number of substations unlimited
with screw terminals
Cable
Load cable length max. 100 m
Cable length, extensions max. 50 m
Settings
Optimisation of the dimming performance by fine adjustment of the load type and special adjustment mode
Equipment
automatic setting of load-dependent switching principle (autoDetect process)
phase cut-on or cut-off according to load type, self-learning
Use conditions
Operating temperature -5 … 45 °C
